Unison UK-Phenyl - 고극성부터 저극성까지 배위 화합물 분석에 최적

Unison

<span class="featureDot">●</span> 250 × 4.6 mm에서 50,000 plates 이론단수를 갖춘 세계적 수준의 컬럼

<span class="featureDot">●</span> 100% 수계부터 비수계 이동상까지 폭넓은 선택성 제공

<span class="featureDot">●</span> 독자적 엔드캡핑으로 염기·산·알칼리 조건에 안정적

<span class="featureDot">●</span> 배위 화합물 및 복합체 분석에 적합

<span class="featureDot">●</span> 다양한 컬럼 사이즈 : 내경 (ID) 0.075 ~ 28 mm / 길이 10 ~ 500 mm

<span class="featureDot">●</span> 고압 저항 옵션 : HP / UP 옵션 제공

Unison UK-Phenyl - 고극성부터 저극성까지 배위 화합물 분석에 최적

Features

 250 × 4.6 mm에서 50,000 plates 이론단수를 갖춘 세계적 수준의 컬럼

 100% 수계부터 비수계 이동상까지 폭넓은 선택성 제공

 독자적 엔드캡핑으로 염기·산·알칼리 조건에 안정적

 배위 화합물 및 복합체 분석에 적합

 다양한 컬럼 사이즈 : 내경 (ID) 0.075 ~ 28 mm / 길이 10 ~ 500 mm

 고압 저항 옵션 : HP / UP 옵션 제공

SPECIFICATIONS

Main Specifications

Particle size

3 μm (Unison UK-Phenyl)

5 μm (Unison US-Phenyl)

Base materials 완전다공성 고순도 실리카겔 (Fully porous, high-purity silica gel)
Pore size 13 nm
Ligand 페닐기 (Phenyl group)
End-capping 있음 (고분자 엔드캡핑, Polymeric end-capping)
Target molecular weight 10 kDa 이하
pH range pH 1.5 - 9
Maximum pressure

250 bar / 3,500 psi / 25 MPa

HP: 500 bar / 7,500 psi / 50 MPa

UP: 1,000 bar / 15,000 psi / 100 MPa

USP Code L11

페닐기 기반의 독특한 분리 특성

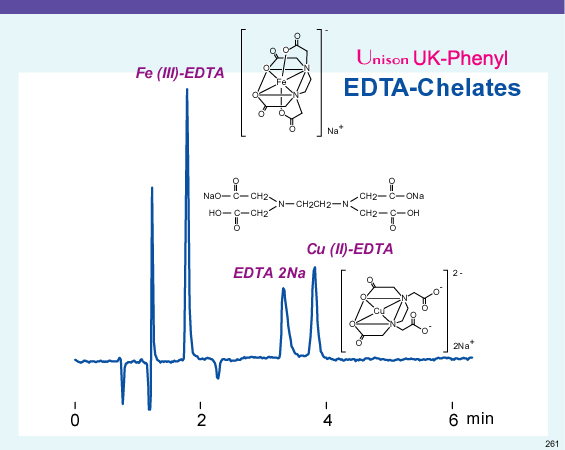

Unison UK-Phenyl 컬럼은 페닐기를 사용한 역상 컬럼으로, ODS 컬럼과는 다른 분리 특성을 보여줍니다. 방향족 화합물이나 이성질체와 같이 구조가 비슷한 물질을 잘 구분하며, 복잡한 화합물도 보다 선명한 피크 형태로 얻을 수 있습니다.

가지사슬 화합물도 하나의 피크로

또한 가지사슬을 가진 탄소 화합물은 하나의 피크로 단순하게 나타내어 해석을 쉽게 해주기 때문에, ODS 컬럼으로 분리하기 어려운 시료 분석에 효과적인 선택이 됩니다.

관련 애플리케이션 검색 (실시간 연동)

Unison UK-Phenyl로 진행된 모든 애플리케이션 데이터와 유저 리포트를 실시간으로 검색할 수 있습니다. (영문 사이트와 동일한 데이터베이스를 사용하여 새로운 자료가 등록되는 즉시 반영됩니다.)

Unison UK-Phenyl 애플리케이션 전체보기 →

애플리케이션 (Applications)

이성질체 및 유사체

기타

유저 논문·학술 자료 (User Articles) NEW

Metabolism and Effects of Acetoaceto-o-toluidine in the Urinary Bladder of Humanized-Liver Mice

Shota Suzuki, Min Gi, Yuko Yanagiba, Naoko Yoneda, Yuki Yoshida, Keiko Matsumoto, Tamie Nakajima
Journal of Toxicologic Pathology. 2025;38(1):1-12
https://doi.org/10.1293/tox.2024-0050


Incorporation of Suvorexant and Lemborexant into Hair and Their Distributions After a Single Intake

Ayaka Nitta, Naoko Shima, Hiroyuki Kamata, Masato Wada, Koichi Matsumoto, Manabu Kumihashi, Osamu Suzuki, Hiroshi Tsuchihashi
Forensic Toxicology. 2025;43:118–127
https://doi.org/10.1007/s11419-024-00735-6


UGT2B15 Single Nucleotide Polymorphism Reduces Dabigatran Acylglucuronide Formation in Humans

Jung-Woo Park, Ji-Min Kim, Yoo-Young Bang, Kyung-Ah Kim, Seongho Yu, In-Jin Jang, Jae-Gook Shin
Frontiers in Pharmacology. 2025;16:1495523
https://doi.org/10.3389/fphar.2025.1495523


Recurrent ventricular arrhythmia due to aconite intoxication
successfully treated with landiolol: A case report

Chiaki Matsuo, Koji Yamamoto, Hidetada Fukushima, Daisuke Yajima, Hiroyuki Inoue
World J Clin Cases 2023 August 6; 11(22): 5303-5308


o-Toluidine metabolism and effects in the urinary bladder of humanized-liver mice Author links open overlay panel

Yuka Yokota, Shugo Suzuki, Min Gi, Yukie Yanagiba, Nao Yoneda, Masaki Fujioka, Anna Kakehashi, Shigeki Koda, Hiroshi Suemizu, Hideki Wanibuchi
Toxicology, Volume 488, April 2023, 153483


Ca2+ imaging with two‑photon microscopy to detect the disruption of brain function in mice administered neonicotinoid insecticides

Anri Hirai, Shouta Sugio, Collins Nimako, Shouta M. M. Nakayama, Keisuke Kato, KeisukeTakahashi, KojiArizono, Tetsushi Hirano, Nobuhiko Hoshi, Kazutoshi Fujioka, KumikoTaira, Mayumi Ishizuka, HiroakiWake & Yoshinori Ikenaka
Scientifc Reports - (2022) 12:5114 - https://doi.org/10.1038/s41598-022-09038-7


Modeling of Anticancer Sulfonamide Derivatives Lipophilicity by Chemometric and Quantitative Structure-Retention Relationships Approaches

Monika Pastewska, Beata Zolnowska, Strahinja Kovaccevic, Hanna Kapica, Maciej Gromelski, Filip Stolinski, Jaroslaw Slawinski, Wieslaw Sawicki and Krzesimir Ciura
Molecules 2022, 27, 3965. https://doi.org/10.3390/molecules27133965


マトリックス効果を補正する液体クロマトグラフィ̶タンデム型質量分析装置を用いたヒト尿中芳香族アミン類の定量方法

須田恵, 柳場由絵, 豊岡達士, 王瑞生,甲田茂樹
「労働安全衛生研究」,Vol. 14 , No. 1 , pp. 3‒14 , (2021)


Multivariate assessment of anticancer oleanane triterpenoids lipophilicity

Monika Pastewska, Barbara Bednarczyk-Cwynar, Strahinja Kovacevic, Natalia Bulawska, Szymon Ulenberg, Pawel Georgiev, Hanna Kapica, Piotr Kawczak, Tomasz Baczek, Wieslaw Sawicki, Krzesimir Ciura
Journal of Chromatography A, Volume 1656, 25 October 2021, 462552


Determination of Sodium Alginate in Processed Food Products Distributed in Korea

Hyo-Jin Yang, Eunbin Seo, Choong-In Yun, Young-Jun Kim
J. Food Hyg. Saf., Vol. 36, No. 6, pp. 474~480 (2021)
https://doi.org/10.13103/JFHS.2021.36.6.474


Comparison of α-dicarbonyl compound contents in alcoholic beverages.

Tatsushi Kimoto, Wakako Takabe, Masayuki Yagi, Mari Ogura, Yoshikazu Yonei
Glycative Stress Research 2020; 7 (2): 152-161


Quantification of the kokumi peptide, γ-glutamyl-valyl-glycine, in cheese: Comparison between cheese made from cow and ewe milk

Motonaka Kuroda, Keita Sasaki, Junko Yamazaki, Yumiko Kato, Toshimi Mizukoshi
Journal of Dairy Science, Volume 103, Issue 9, September 2020, Pages 7801-7807


Differentiation of o-, m-, and p-fluoro-α-pyrrolidinopropiophenones by Triton B-mediated one-pot reaction

Takaya Murakami, Yoshiaki Iwamuro, Reiko Ishimaru, Satoshi Chinaka, Hiroshi Hasegawa, Rahul D. Kavthe, Naoki Asao
Forensic Science International, Volume 302, September 2019, 109847


Promotion effects of acetoaceto-o-toluidide on N-butyl-N-(4-hydroxybutyl)nitrosamine-induced bladder carcinogenesis in rats

Nao Yukimatsu, Min Gi, Takahiro Okuno, Masaki Fujioka, Shugo Suzuki, Anna Kakehashi, Yukie Yanagiba, Megumi Suda, Shigeki Koda, Tatsuya Nakatani & Hideki Wanibuchi
Archives of Toxicology (2019) 93:3617-3631
https://doi.org/10.1007/s00204-019-02605-4


Targeting hepatic glutaminase activity to ameliorate hyperglycemia

Russell A.Miller, Yuji Shi, Wenyun Lu, David A.Pirman, Aditi Jatkar, Matthew Blatnik, Hong Wu, Cesar Cardenas, Min Wan, J Kevin Foskett, Junyoung O.Park, Yiyi Zhang, William L Holland, Joshua D.Rabinowitz, Morris J.Birnbaum
Nat Med. 2018 May ; 24(4): 518-524. doi:10.1038/nm.4514.


Molecularly imprinted polymer solid-phase extraction of synthetic cathinones from urine and whole blood samples

Takaya Murakami, Yoshiaki Iwamuro, Reiko Ishimaru, Satoshi Chinaka, Hiroshi Hasegawa
The Journal of Separation Science, Volume41, Issue24, December 2018, Pages 4506-4514


Analysis of anti-glycative components in Smallanthus sonchifolius (yacon)

Taiki Yamaguchi, Wakako Takabe, Masayuki Yagi, Yoshikazu Yonei
Glycative Stress Research, 5, 1, 036-044, 2018


Long-term accumulation of diphenylarsinic acid in the central nervous system of cynomolgus monkeys

Tomoyuki Masuda, Kazuhiro Ishii, Yasuo Seto, Tomoko Hosoya, Ryuta Tanaka, Tomohiro Nakayama, Nobuaki Iwasaki, Yasuyuki Shibata, Akira Tamaoka
Archives of Toxicology, 91, 2799-2812, 2017


Anti-glycative effect of Japanese sake (seishu): Prevention of advanced glycation end product (AGE) formation.

Keisuke Tadasue, Wakako Takabe, Masayuki Yagi, Yoshikazu Yonei
Glycative Stress Research, 4, 2, 080-086, 2017


Anti-glycative effect of vegetable and fruit extracts on multiple glycation models

Wakako Takabe, Keiko Kitagawa, Kenjiro Yamada, Yuki Noda, Rina Yamamoto, Taiki Yamaguchi, Ryosuke Kannan, Masayuki Yagi and Yoshikazu Yonei
Glycative Stress Research, 4, 1, 071-079, 2017


Melanin synthesis induction by advanced glycation end-products (AGEs) without α-melanocyte stimulating hormone (α-MSH) or UV exposure

Yumi Abe, Wakako Takabe, Masayuki Yagi, Akemi Uwaya, Fumiyuki Isami, Shoichi Yamagishi, Yoshikazu Yonei
Glycative Stress Research, 3, 4, 229-235, 2016


Anti-glycative effect of palladium and platinum nanoparticle solution

Wakako Takabe, Masayuki Yagi, Masamitsu Ichihashi, Yoshikazu Yonei
Glycative Stress Research, 3, 4, 222-228, 2016


Glycative stress and anti-aging: 2. The Evaluation of Glycative Stress: Measurement of blood glucose, glycated proteins and intermediates.

Masayuki Yagi, Yoshikazu Yonei
Glycative Stress Research, 3, 4, 205-209, 2016


Discovery and characterization of novel inhibitors of the sodium-coupled citrate transporter (NaCT or SLC13A5)

Kim Huard, Janice Brown, Jessica C. Jones, Shawn Cabral, Kentaro Futatsugi, Matthew Gorgoglione, Adhiraj Lanba, Nicholas B. Vera, Yimin Zhu, QingyunYan, Yingjiang Zhou, Cecile Vernochet, Keith Riccardi, Angela Wolford, David Pirman, Mark Niosi, Gary Aspnes, Michael Herr, Nathan E. Genung, Thomas V. Magee, Daniel P. Uccello, Paula Loria, Li Di, James R. Gosset, David Hepworth, Timothy Rolph, Jeffrey A. Pfefferkorn and Derek M. Erion
Nature, Scientific Reports, 5, 17391, 2015


Determination and quantification of kokumi peptide, γ-glutamyl-valyl-glycine, in brewed alcoholic beverages

Naohiro Miyamura, Yuko Iida, Motonaka Kuroda, Yumiko Kato, Junko Yamazaki, Toshimi Mizukoshi, Hiroshi Miyano
Journal of Bioscience and Bioengineering, 120, 3, 311-314, 2015


Potential in bioethanol production from various ethanol fermenting microorganisms using rice husk as substrate

WOOTTICHAI NACHAIWIENG, SAISAMORN LUMYONG, RONACHAI PRATANAPHON, KOICHI YOSHIOKA, CHARTCHAI KHANONGNUCH
Journal of Biological Diversity, 16, 2, 320-326, 2015


Glutamine deprivation stimulates mTOR-JNK-dependent chemokine secretion

Naval P. Shanware, Kevin Bray, Christina H. Eng, Fang Wang, Maximillian Follettie, Jeremy Myers, Valeria R. Fantin and Robert T. Abraham
Nature Communications, 5, 4900, 2014


Neurosteroid Synthesis in Adult Female Rat Hippocampus, Including Androgens and Allopregnanolone

Yasushi Hojo, Masahiro Okamoto, Asami Kato, Shimpei Higo, Fusako Sakai, Hideaki Soya, Takeshi Yamazaki and Suguru Kawato
Journal of Steroids and Hormonal Science, S4-002, 2014


エキシマー蛍光誘導体化による水試料中アミノポリカルボン酸類のLC分析

加藤 賢志, 巴 山 忠, 糸山 美紀,轟木堅一郎,吉田 秀幸,山口 政俊,能 田 均
分析化学(BUNSEKI KAGAKU), 60, 1, 39-44, 2011


Concentration Dependence of 5-Aminosalicylic Acid Pharmacological Actions in Intestinal Mucosa after Oral Administration of a pH-Dependent Formulation

Masamichi Hirayama, Ryoko Toda, Tomoko Ozaki, Junko Hasegawa, Toshifumi Nakamura, Yoko Naraki, Yukari Haraguchi, Yuko Hori, Takao Tanaka, Mineo Takei, Yukinori Mera, Kazuyoshi Yoshii, and Yoshihiro Kawabata
Molecular Pharmaceutics, 8, 4, 1083-1089, 2011


Use of An Intravenous Microdose of 14C-labeled drug and Accelerator Mass Spectrometry to measure Absolute Oral Bioavailability in Dogs; Cross-comparison of Assay Methods by Accelerator Mass Spectrometry and Liquid Chromatography-Tandem Mass Spectrometry

Yoshihiro MIYAJI, Tomoko ISHIZUKA, Kenji KAWAI, Yoshimi HAMABE, Teiji MIYAOKA, Toshinari OH-HARA, Toshihiko IKEDA and Atsushi KURIHARA
Drug Metabolism and Pharmacokinetics, 24, 2, 130-138, 2009


Mass spectrometric profiling of saturated fatty acid esters of steroids separated by high-temperature gas chromatography

Hyun-Jin Jung, Won-Yong Lee, Bong Chul Chung, Man Ho Choi
Journal of Chromatography A, 1216, 9, 1463-1468, 2009


Aqueous phototransformation of zinc pyrithione: Degradation kinetics and byproduct identification by liquid chromatography-atmospheric pressure chemical ionisation mass spectrometry

V.A. Sakkas, K. Shibata, Y. Yamaguchi, S. Sugasawa, T. Albanis
Journal of Chromatography A, 1144, 2, 175-182, 2007


Direct analysis of zinc pyrithione using LC-MS

Yoshitaka Yamaguchi, Akira Kumakura, Shinobu Sugasawa, Hiroya Harino, Yasuhiro Yamada, Kiyoshi Shibata and Tetsuya Senda
International Journal of Environmental Analytical Chemistry, 86, 1-2, 83-89, 2006


Study on the behavior of antifouling substances for ship bottom coatings in seawater

Tetsuya Chida, Kiyoshi Shibata, Toshiaki Shibata, Yoshitaka Yamaguchi, Osamu Miyata, Shinobu Sugasawa, Chiori Takahashi, Masakazu Hara, Hiroya Morishima, Hiroya Harino
Report of the Maritime Technology Safety Research Institute, 5, 1, 1-37, 2005


High-Performance Liquid Chromatography-Mass Spectrometry法を用いた Bacillus cereusセレウリド(嘔吐毒)検出法の検討

川村 久美子, 平間 佑美, 安形 則雄, 伊藤 秀郎, 太田 美智男
日本臨床微生物学会誌, 15, 2, 68-76, 2005
